[Supply] 25TON S type Automatic presses machine  |
|
|
|
Description:
|
CPCP
Yangzhou haili precision Machinery Manufacturing Co.,LTD
www.hailijixie.com
Tel:0086-514-87783722
Fax:0086-514-87783721
Email:genxia@hailimachine.com
Mobile :0086-13004308229 Ms Shirely

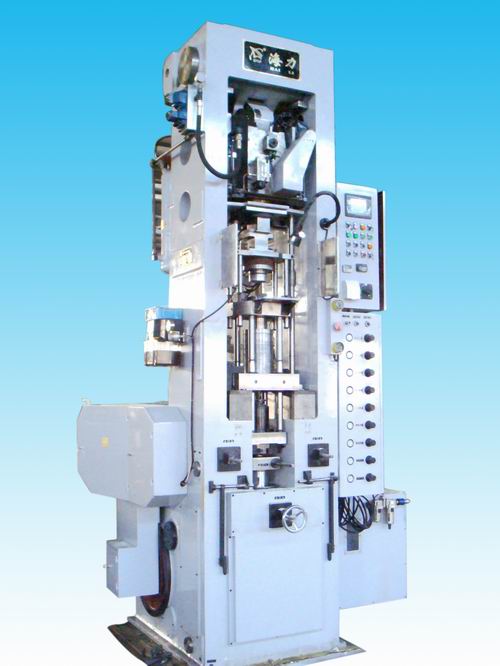

HPP-250S 25TON
Technical Specification
1.Max pressing capacity : 250KN
2.Max ejection capacity :250KN
3.Max die withdrawing pressure:120KN
4.Max die return force :8.5KN
5.Upper punch stroke :150mm
6.Upper punch adjustment:60mm
7.Max depth of filling :100mm
8.Max pressing stroke :100mm
9.Max ejection stroke:100mm
10.Max top pressing stroke :70mm
11.Over (under) filling stroke :5mm
12.Die ejection level adjustment:15mm
13.Max compact diameter:75mm
14.Strokes per minute:8-24
15Type of feeding device :Straight cam vibration
16.Feeder stroke :130mm
17.Powder hopper :10L
18.Type of upper punch adjustment :Manual
19.Type of filling adjustment :Manual
21.Type of top pressing adjustment:Manual
22.Type of Lubrication :Motorized oil pump
23.Speed chang device :inverter
24.Clutch&brake :Air Clutch
25.Required air presure:0.5-0.7 Mpa
26.Air consumption :580L/min
27.Main motor powder :5.5kw
28.Dimensions:2800*2000*1600mm
29. Weight :3500kg
|
|
